PROCESS & CONTROL LOOP TESTING

Fluke 772 11-Inch Milliamp Process Clamp Meter

Professional process clamp meter designed for troubleshooting, commissioning and maintaining 4–20 mA control and instrumentation loops. Measure current without opening the loop, or source and simulate milliamp signals for testing control-system inputs and outputs.

Snowmaking Application

Especially useful for snowmaking pump stations, valve stations, storage tanks and automated snowmaking systems using 4–20 mA instrumentation. Test pressure transmitters, flow meters, tank-level sensors, temperature transmitters, valve positioners and PLC analog I/O without unnecessarily disrupting the process loop.

PRIMARY PROCESS SIGNAL

4–20 mA

CLAMP MEASUREMENT RANGE

0–100 mA

PRIMARY RESOLUTION

0.01 mA

PRIMARY ACCURACY

0.2% + 5 Counts

SOURCE RANGE

0–24.00 mA

SIMULATE RANGE

0–24.00 mA

LOOP POWER

24 V DC

PROTECTION

IP40

Key Features

Measure 4–20 mA process signals without breaking the loop
Source 4–20 mA signals for testing PLC and control system analog inputs
Simulate 4–20 mA transmitter signals
24 V loop power for powering and testing transmitters
Simultaneous in-circuit mA measurement and loop power
Detachable clamp with extension cable for tight control panels
Linear ramp output
25% step output
Dual backlit display showing mA and percent of 4–20 mA span
Measurement spotlight for dark enclosures
Hold function for changing measurements

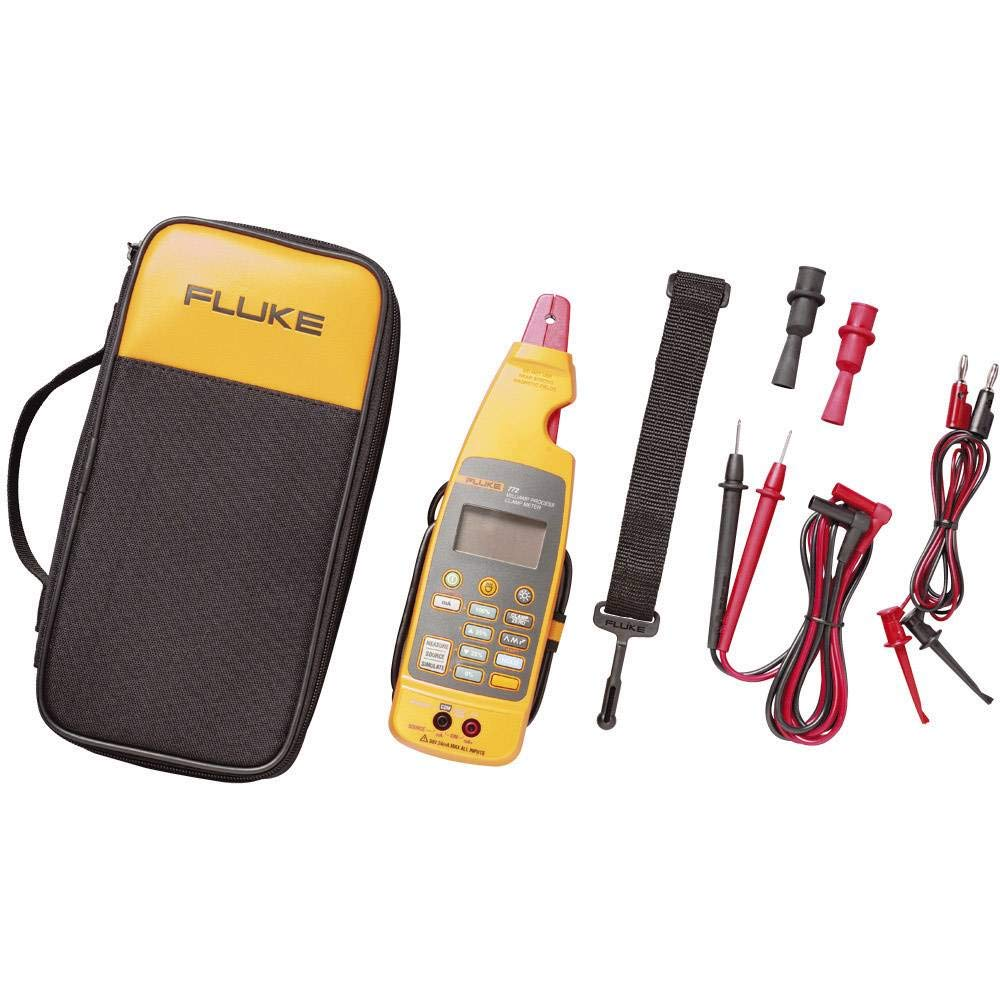

Manufacturer Package Includes Fluke 772 Milliamp Process Clamp Meter, TL75 test leads, AC72 detachable clip, TL940 mini-hook test leads, four AA batteries, magnetic hanging strap, soft carrying case and quick-reference documentation.

Request Pricing & Availability

Contact Snow Systems International for current availability and quotation.

Manufacturer: Fluke · Model: 772 · Part #: 3362352
